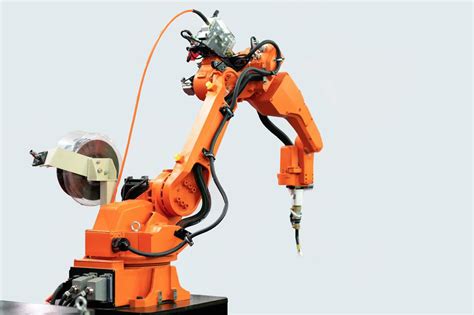

The Mechanics of Motion: Unlocking Industrial Robot Performance

Industrial robots are the backbone of modern manufacturing, automating repetitive and hazardous tasks to enhance productivity and efficiency. Understanding their fundamental components is crucial for maximizing their effectiveness.

1. Anatomy of an Industrial Robot

The core components of an industrial robot include:

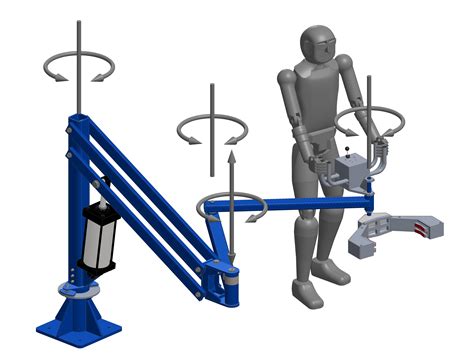

• Manipulator Arm: The primary structure that houses the arm joints and carries the end effector.
• Joints: Articulated connections that enable movement along different axes, granting robots a wide range of motion.
• End Effector: A versatile tool mounted at the end of the arm, adapted to perform specific tasks like welding, painting, or assembly.

2. Control System: The Robotic Brain

The control system orchestrates the robot's movements and behavior. It comprises:

• Controller: The "brain" of the robot, executing control algorithms and communicating with sensors and actuators.
• Software: Programmed instructions that define the robot's movements, parameters, and safety protocols.
• Sensors: Detect the robot's position, orientation, and environment, providing real-time feedback for precise control.

3. Power Source: Electrifying Performance

Robots rely on various power sources, including:

• Electric Motors: The most common actuators, providing motion and torque to the robot's joints.
• Pneumatic Motors: Use compressed air to generate power, offering speed and flexibility.
• Hydraulic Systems: Utilize high-pressure fluids, providing immense force and durability.

4. Safety Mechanisms: Ensuring a Secure Workspace

Industrial robots must adhere to strict safety standards. Essential safety features include:

• Safety Guards: Physical barriers or sensors that prevent personnel from entering hazardous zones.
• Emergency Stop Buttons: Instantaneously halt robot operations in case of emergencies.
• Collision Detection: Systems that detect potential collisions and trigger automatic avoidance measures.

5. End Effectors: Task-Specific Tools

End effectors are crucial for robots to interact with their environment. They come in diverse forms, tailored to specific applications:

• Grippers: Precisely grasp and manipulate objects of various shapes and sizes.
• Welders: Fuse metal components with precision and efficiency.
• Painters: Apply coatings with consistent quality and coverage.

6. Mobility: Expanding Robot's Reach

Robots can be equipped with various mobility options to extend their operating range:

• Linear Actuators: Allow robots to move along linear paths, enabling precise positioning.
• Mobile Platforms: Provide autonomous movement around the workspace, enhancing flexibility.
• Collaborative Robots (Cobots): Designed to safely interact with human workers, extending reach and capabilities.

7. Importance of Calibration: Precision and Accuracy

Calibration is paramount to maintain precision and accuracy in industrial robot operations. It involves:

• Kinematic Calibration: Verifying the robot's joint angles and dimensions to ensure accurate movements.
• Tool Center Point (TCP) Calibration: Determining the position of the end effector relative to the robot's base.
• Payload Calibration: Adjusting the robot's control parameters to accommodate varying tool weights.

8. Advanced Features: Enhancing Capabilities

Modern industrial robots offer numerous advanced features that enhance their versatility and performance:

• Vision Systems: Integrate cameras and sensors to provide visual feedback, enabling precise part identification and handling.
• Artificial Intelligence (AI): Utilize algorithms to learn from data, enabling autonomous decision-making and self-optimization.
• Force Sensors: Measure the force applied by the robot, ensuring safe and delicate interactions with objects.

9. Benefits of Industrial Robots: A Transformative Force

Industrial robots deliver substantial benefits to manufacturers:

• Increased Productivity: Automate repetitive tasks, freeing human workers for higher-value operations.
• Improved Quality: Perform precise and consistent operations, reducing defects and waste.
• Reduced Costs: Lower labor expenses, reduced material usage, and optimized energy consumption.

10. Challenges and Troubleshooting: Navigating Potential Issues

While industrial robots offer numerous benefits, there are potential challenges to consider:

• Integration and Implementation: Careful planning and skilled technicians are required for effective integration.
• Maintenance and Upkeep: Regular maintenance and periodic calibrations are crucial for optimal performance.
• Skills and Training: Operators and maintenance personnel require specialized skills and training.

Common Mistakes to Avoid

To ensure optimal performance and longevity of industrial robots, certain mistakes should be avoided:

• Overloading: Exceeding the robot's payload capacity can damage joints and actuators.
• Improper Calibration: Neglecting calibration can lead to imprecise movements and inaccuracies.
• Safety Oversight: Failing to implement proper safety measures can endanger personnel and equipment.

Humorous Stories and Lessons Learned

1. The Forgetful Robot: A robot programmed to fetch parts repeatedly went back to the same location, even after the parts were moved. Lesson: Ensure clear instructions and update parameters regularly.
2. The Overly Enthusiastic Robot: A robot designed to stack boxes got carried away and began stacking them into a precarious tower. Lesson: Set appropriate safety protocols to prevent accidents.
3. The Clumsy Robot: A robot accidentally dropped a heavy object onto its foot during a maintenance check. Lesson: Proper training and supervision are essential to avoid costly mistakes.

Tables

FAQs

1. What is the difference between a robot and a cobot?
   - Robots are typically large and autonomous, while cobots are smaller and designed for safe collaboration with humans.
2. How much does an industrial robot cost?
   - Costs vary depending on size, capabilities, and features, but typically range between $50,000 to $500,000.
3. What are the primary applications of industrial robots?
   - They are commonly used in manufacturing, automotive, and medical industries, performing tasks like assembly, welding, and painting.
4. How long does it take to implement an industrial robot?
   - Implementation timelines vary, but expect several months for planning, integration, and testing.
5. What safety measures are required for industrial robots?
   - Safety guards, emergency stop buttons, and collision detection systems are essential safety features.
6. How can I learn more about industrial robot programming?
   - Consider online courses, workshops, or training programs offered by robot manufacturers and educational institutions.
7. What are the latest trends in industrial robotics?
   - Advanced features like AI, vision systems, and force sensing are gaining momentum, enhancing robot capabilities.
8. How can I find reliable industrial robot suppliers?
   - Consult industry directories, attend trade shows, and seek referrals from reputable manufacturers.
