A Comprehensive Guide to the Inner Workings of Bearings

Bearings play a crucial role in various mechanical systems, facilitating smooth and efficient movement by reducing friction between rotating surfaces. Understanding the internal components and their functions is essential for effective bearing maintenance and optimization. This article delves into the intricate world inside a bearing, providing valuable insights and practical guidance.

Components of a Bearing

A typical bearing consists of several key components, each with a specific function:

• Inner Ring: The inner ring fits directly onto the rotating shaft and provides a raceway for the rolling elements.
• Outer Ring: The outer ring is stationary and provides the second raceway for the rolling elements.
• Rolling Elements: These elements, such as balls or rollers, roll between the inner and outer rings, reducing friction.
• Cage: The cage holds the rolling elements in place and prevents them from colliding with each other.
• Lubrication: Lubrication provides a protective layer between the bearing components, reducing wear and extending lifespan.

Rolling Element Types

The type of rolling element used within a bearing significantly impacts its performance and applications:

Ball Bearings:

• Use small, spherical balls as rolling elements.
• Provide moderate load capacity and low friction, but can handle radial loads only.

Roller Bearings:

• Employ cylindrical or tapered rollers as rolling elements.
• Offer higher load capacity than ball bearings, but have higher friction and can accommodate both radial and axial loads.

Bearing Classification

Bearings can be categorized based on several factors:

• Motion: Radial bearings support radial loads, while axial bearings support axial loads.

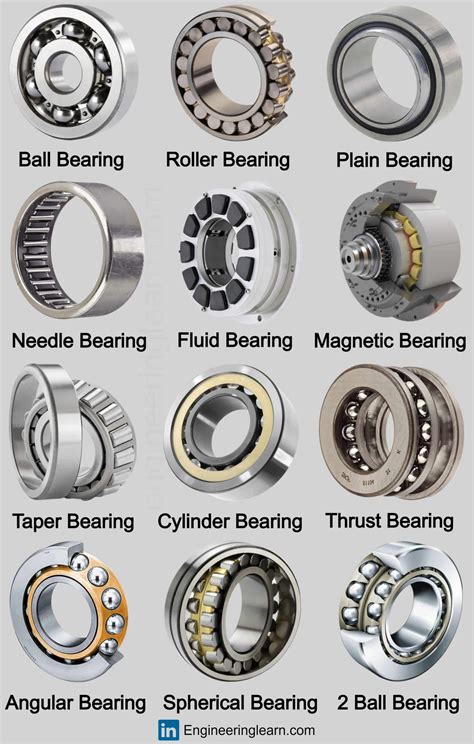

• Type: Deep-groove ball bearings, roller bearings, tapered roller bearings, etc.
• Design: Open, sealed, shielded, etc.

Importance of Bearing Maintenance

Regular bearing maintenance is crucial to ensure optimal performance and extend lifespan:

Benefits of Proper Maintenance:

• Reduced downtime
• Increased efficiency
• Extended bearing life
• Improved safety

Consequences of Neglect:

• Premature bearing failure
• Damage to other system components
• Decreased productivity
• Increased maintenance costs

Effective Bearing Maintenance Strategies

Implementing a comprehensive bearing maintenance strategy is essential for maximizing bearing performance:

• Condition Monitoring: Regularly monitor bearings for vibration, temperature, and lubrication levels to detect potential issues early.
• Regular Lubrication: Use the appropriate type and amount of lubricant to minimize friction and wear.
• Proper Installation: Ensure bearings are installed correctly to prevent premature failure.
• Bearing Inspection: Conduct periodic inspections to check for wear, contamination, or damage.
• Failure Analysis: Analyze bearing failures to identify root causes and implement corrective measures.

Tips and Tricks for Bearing Maintenance

• Prevent Contamination: Keep bearings protected from dirt, moisture, and other contaminants.
• Use the Right Lubricant: Refer to bearing specifications to determine the recommended lubricant type and viscosity.
• Monitor Lubrication Levels: Regularly check lubrication levels and replenish as needed.
• Avoid Overheating: Excessive heat can damage bearings. Use cooling methods if necessary.
• Store Bearings Properly: Store bearings in a clean, dry environment when not in use.

Step-by-Step Approach to Bearing Replacement

Replacing a bearing requires careful attention to detail:

1. Disassemble the Machine: Remove the components necessary to access the bearing.
2. Remove the Old Bearing: Carefully remove the old bearing from its housing.
3. Inspect the Housing: Check for any damage or wear on the bearing housing.
4. Clean the Housing: Remove any debris or contamination from the housing.
5. Install the New Bearing: Place the new bearing into the housing and secure it properly.
6. Lubricate the Bearing: Apply the appropriate lubricant to the bearing.
7. Reassemble the Machine: Replace the components removed during disassembly.

Conclusion

Understanding the inner workings of bearings is essential for effective maintenance and optimization. By implementing the strategies, tips, and step-by-step approach outlined in this article, you can ensure that your bearings perform optimally and extend their lifespan. Regular maintenance not only minimizes downtime and improves efficiency but also contributes to increased productivity and safety within your mechanical systems.
