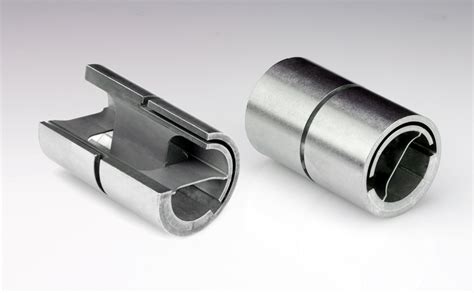

Flexure Bearings: A Comprehensive Guide to Their Design, Applications, and Selection

Flexure bearings, also known as flexural pivots or flexures, are a type of frictionless bearing that provides precise motion and control in various applications. Unlike traditional rolling-element bearings, flexure bearings rely on the elastic deformation of thin, flexible elements to support loads and enable motion.

Advantages of Flexure Bearings

Flexure bearings offer several advantages over traditional bearings, including:

• Zero backlash: Flexure bearings eliminate backlash by providing rigid support in one direction while allowing for easy movement in perpendicular directions.
• High precision: The stiffness and flexibility of the flexure elements can be precisely controlled, enabling high-precision motion and positioning.
• Low friction: Flexure bearings operate without rolling elements or lubrication, resulting in low friction and smooth, frictionless motion.
• Compact design: Flexure bearings are typically compact and lightweight, making them suitable for applications with space constraints.

Types of Flexure Bearings

Flexure bearings come in various types, each with its unique characteristics and applications:

• Single-axis flexures: Designed to provide motion in a single direction, such as vertical or lateral movement.
• Multi-axis flexures: Allow motion in multiple directions simultaneously, offering greater flexibility in positioning.
• Planar flexures: Provide movement in a single plane, often used in optical alignment systems or micro-positioning devices.
• Hybrid flexures: Combine flexure elements with rolling-element bearings to enhance load capacity and precision.

Applications of Flexure Bearings

Flexure bearings are widely used in precision engineering applications, including:

• Optics and photonics: Alignment and positioning of optical components in telescopes, microscopes, and laser systems.
• Medical devices: Robotic surgery, precision medical instruments, and microfluidics.
• Semiconductors: Sub-micron positioning and alignment in wafer processing and lithography.
• Aerospace and defense: Gimbal systems, optical tracking, and navigation sensors.
• Metrology: Precision measurement devices, such as interferometers and profilometers.

Selection and Design Considerations

Selecting the right flexure bearing for a specific application requires careful consideration of several factors:

• Load capacity: The bearing must be able to withstand the maximum loads it will encounter during operation.
• Stiffness: The bearing's stiffness determines its resistance to deformation under load, affecting its precision and stability.
• Travel range: The flexure elements must provide the required range of motion in the desired directions.
• Materials: The materials used in the flexure elements should provide the necessary stiffness, strength, and durability.
• Size and weight: The bearing's dimensions and weight should be compatible with the application's space constraints.

Design and Analysis

The design of flexure bearings involves complex mathematical modeling and simulations to determine the optimal geometry and material properties for the flexure elements. Engineers use specialized software to analyze the bearing's stiffness, natural frequencies, and stress distribution.

Effective Strategies for Optimal Performance

To ensure optimal performance of flexure bearings, consider the following strategies:

• Use high-quality materials: Select materials with high stiffness and fatigue strength to minimize deformation and extend the bearing's lifespan.
• Minimize parasitic motion: Design the flexure elements to avoid unwanted motion in undesired directions.
• Control temperature: Thermal expansion can affect the bearing's performance, so consider temperature fluctuations during operation.
• Avoid overloads: Exceeding the bearing's load capacity can lead to permanent deformation or failure.

Tips and Tricks for Troubleshooting

Troubleshooting flexure bearing issues requires a systematic approach:

• Identify the symptoms: Observe the bearing's behavior under different conditions to identify any unusual noises, vibrations, or deviations in motion.
• Inspect the flexure elements: Examine the flexure elements for any visible damage, cracks, or deformation.
• Check the mounting: Ensure the bearing is properly mounted and aligned to minimize stress concentrations.
• Test the stiffness: Use a force gauge or other testing equipment to verify the bearing's stiffness and compare it to the desired specifications.

Step-by-Step Approach to Flexure Bearing Selection

Follow these steps for a successful flexure bearing selection:

1. Define the application requirements: Determine the load capacity, stiffness, travel range, and environmental conditions the bearing must meet.
2. Research different types of flexure bearings: Explore the various types of bearings available and their suitability for the specific application.
3. Evaluate suppliers: Identify potential suppliers who specialize in flexure bearing design and manufacturing.
4. Request samples and specifications: Obtain samples or technical data from the suppliers for evaluation and comparison.
5. Test and verify performance: Conduct performance tests to verify the bearing's stiffness, travel range, and load capacity.
6. Final selection and installation: Choose the bearing that best meets the application requirements and install it carefully following the manufacturer's guidelines.

Frequently Asked Questions (FAQs)

1. What is the difference between a flexure bearing and a rolling-element bearing?
   A: Flexure bearings rely on elastic deformation, while rolling-element bearings use rolling elements to support loads and enable motion.



2. How do I determine the stiffness of a flexure bearing?
   A: The stiffness of a flexure bearing can be determined through mathematical modeling or experimental testing.

3. What materials are commonly used in flexure elements?
   A: Common materials include stainless steel, beryllium copper, and polymers, depending on the required stiffness and strength.

4. How do I avoid overloads in a flexure bearing?
   A: Monitor the loads applied to the bearing and ensure they do not exceed the specified load capacity.

5. How do I troubleshoot a flexure bearing that is not performing as expected?
   A: Check for visible damage, verify the mounting, test the stiffness, and consult with the manufacturer for assistance.

6. What are some effective strategies to enhance the performance of flexure bearings?
   A: Use high-quality materials, minimize parasitic motion, control temperature, and avoid overloads.

Call to Action

Flexure bearings bieten exceptional precision and frictionless motion for a wide range of applications. By understanding their design principles, selecting the right type for your needs, and following best practices, you can optimize their performance and extend their lifespan.
