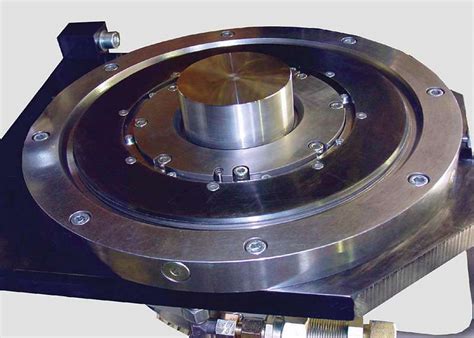

Hydrostatic Bearings: Unlocking Precision and Efficiency in Motion Control

Introduction

In the realm of precision engineering, hydrostatic bearings stand as a pinnacle of excellence, enabling unparalleled accuracy and smoothness in motion control. Defined by their utilization of a pressurized fluid film to separate bearing surfaces, hydrostatic bearings eliminate friction and wear, resulting in extended lifespans and exceptional performance.

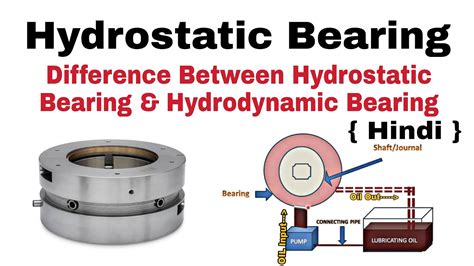

How Hydrostatic Bearings Work

The operation of hydrostatic bearings revolves around the introduction of a high-pressure fluid between the bearing surfaces. This fluid, typically a hydraulic oil, is pressurized and pumped into the bearing gap, creating a thin and uniform film that separates the bearing surfaces.

The pressurized fluid film exerts upward force on the bearing, counteracting the external loads acting on it. This phenomenon effectively "floats" the bearing, preventing metal-to-metal contact and eliminating friction.

Key Features of Hydrostatic Bearings

• Low Friction: Pressurized fluid film eliminates metal-to-metal contact, minimizing friction losses.
• High Load Capacity: Hydrostatic bearings can withstand extreme loads due to the large bearing surface area and uniform pressure distribution.
• Extended Lifespan: Reduced friction and wear extend the operating life of hydrostatic bearings significantly.
• Accuracy and Precision: Precise control of fluid pressure maintains constant bearing clearance, ensuring exceptional accuracy and repeatability.
• Stiffness and Damping: Adjustable fluid pressure allows for tailored stiffness and damping characteristics, optimizing system performance.

Applications of Hydrostatic Bearings

Due to their superior characteristics, hydrostatic bearings find extensive application in industries demanding precision and reliability:

• Machine Tools: High-speed machining and grinding machines rely on hydrostatic bearings for minimizing friction and maximizing accuracy.
• Robotic Systems: Precision robots utilize hydrostatic bearings to achieve smooth and precise movements with minimal backlash.
• Metrology Equipment: Measuring instruments, such as coordinate measuring machines, employ hydrostatic bearings for unparalleled accuracy and stability.
• Medical Devices: High-precision surgical robots and imaging equipment benefit from the low friction and high load capacity of hydrostatic bearings.
• ** Aerospace Industry:** Rocket turbopumps and satellite guidance systems utilize hydrostatic bearings for their exceptional performance under extreme conditions.

Types of Hydrostatic Bearings

Hydrostatic bearings come in various configurations to meet specific application requirements:

• Plain Bearings: Cylindrical or flat bearing surfaces with a simple geometry designed for low-speed applications.
• Journal Bearings: Bearings with a cylindrical shape used for supporting rotating shafts, offering high load capacity and stiffness.
• Thrust Bearings: Bearings designed to withstand axial loads with flat, tilting pad, or spherical geometries.
• Gas Bearings: Specialized bearings that use a pressurized gas as the lubricant, providing exceptionally low friction.

Common Fluids Used in Hydrostatic Bearings

The choice of fluid for hydrostatic bearings is critical to ensure optimal performance and reliability. Some commonly used fluids include:

Benefits of Using Hydrostatic Bearings

The implementation of hydrostatic bearings offers a range of significant benefits:

• Reduced Friction: Pressurized fluid film minimizes friction losses, improving energy efficiency and extending component life.
• Enhanced Load Capacity: Hydrostatic bearings can withstand high loads due to uniform pressure distribution and large surface areas.
• Increased Accuracy and Precision: Accurate control of fluid pressure ensures constant bearing clearance, leading to superior accuracy and precision.
• Improved Stiffness and Damping: Adjustable fluid pressure enables customization of bearing stiffness and damping characteristics for optimal system performance.
• Reduced Noise and Vibration: Pressurized fluid film effectively dampens vibrations, reducing noise and enhancing operational smoothness.

Tips and Tricks for Hydrostatic Bearing Design and Operation

To ensure optimal performance and reliability, consider the following tips:

• Use high-quality fluids with appropriate viscosity and cleanliness.
• Maintain a constant and adequate supply of fluid pressure.
• Design for proper bearing clearances to minimize fluid leakage.
• Consider using filters and coolers to maintain fluid quality.
• Monitor bearing temperature and pressure to detect any performance issues.
• Regularly inspect and maintain bearings to prevent premature failure.

Humorous Stories and Lessons Learned

Story 1:

A technician was troubleshooting a hydrostatic bearing application when he noticed a persistent leak. After hours of diligent effort, he discovered the source: a poorly tightened bolt. Lesson learned: Never underestimate the importance of checking the basics.

Story 2:

A team of engineers was designing a new hydrostatic bearing system for a high-speed machine. They spent countless hours optimizing fluid pressure and bearing geometry. However, during testing, the bearings failed prematurely. The investigation revealed that they had overlooked the impact of temperature on fluid viscosity. Lesson learned: Pay attention to the operating conditions and their effects on bearing performance.

Story 3:

A factory worker was tasked with replacing a hydrostatic bearing on a critical piece of machinery. He mistakenly installed the bearing upside down. When the machine was started, it seized up immediately. The lesson learned: Always double-check the orientation of bearings before installation.

Step-by-Step Approach to Hydrostatic Bearing Design

1. Determine application requirements and load specifications.
2. Select an appropriate bearing type and configuration.
3. Calculate bearing dimensions and fluid pressure based on load and speed.
4. Design for proper fluid supply, filtration, and temperature control.
5. Analyze bearing performance and make adjustments as necessary.
6. Optimize bearing clearances and damping characteristics for desired system performance.

Why Hydrostatic Bearings Matter

In industries demanding precision, reliability, and efficiency, hydrostatic bearings hold immense value. They enable:

• Enhanced Product Quality: Precision motion control improves product accuracy and consistency.
• Increased Productivity: Reduced friction and wear extend machine uptime and reduce maintenance costs.
• Lower Operating Costs: Energy savings from reduced friction and long bearing life reduce overall operational expenses.
• Extended Equipment Life: Hydrostatic bearings significantly increase the lifespan of machines and components.
• Improved Safety: Elimination of friction hazards enhances safety in hazardous environments.

FAQs

1. What are the main advantages of hydrostatic bearings?
   - Reduced friction, enhanced load capacity, increased accuracy, improved stiffness and damping, reduced noise and vibration.
2. What types of applications are hydrostatic bearings used in?
   - Machine tools, robotic systems, metrology equipment, medical devices, aerospace industry.
3. What are the common fluids used in hydrostatic bearings?
   - Hydraulic oils, synthetic oils, greases, water.
4. What factors should be considered when designing hydrostatic bearings?
   - Load specifications, bearing type, fluid pressure, fluid properties, operating conditions.
5. How can hydrostatic bearing performance be optimized?
   - Use high-quality fluids, maintain constant fluid pressure, design for proper clearances, monitor temperature and pressure, perform regular inspections.
6. What are the potential failure modes of hydrostatic bearings?
   - Insufficient fluid supply, fluid contamination, excessive wear, bearing clearance issues, fluid pressure fluctuations.

Conclusion

Hydrostatic bearings represent a transformative technology in precision engineering, enabling exceptional motion control and reliability. Their unique combination of low friction, high load capacity, and unmatched accuracy makes them the preferred choice for applications demanding the highest performance and efficiency. By embracing the principles and benefits of hydrostatic bearings, industries can unlock new frontiers of precision, productivity, and innovation.
