Friction Bearings: A Comprehensive Guide to Types, Applications, and Maintenance

Friction bearings are mechanical components that allow for relative motion between two surfaces while reducing friction and wear. They are widely used in various industries, accounting for approximately 80% of all bearings in operation. This comprehensive guide aims to shed light on the different types of friction bearings, their applications, maintenance practices, and common mistakes to avoid.

Types of Friction Bearings

Friction bearings can be categorized into two main types:

• Sliding Friction Bearings: These bearings rely on direct contact between the bearing surface and the rotating shaft.
• Rolling Friction Bearings: These bearings have rolling elements, such as balls or rollers, interposed between the bearing surface and the shaft to reduce friction.

Sliding Friction Bearings

• Plain Bearings (Journal Bearings): Simple bearings made of a non-ferrous lining or a white metal alloy inserted into a bearing housing.
• Bush Bearings: Solid cylindrical bearings with a larger diameter than plain bearings, offering better load-carrying capacity.
• Hydrostatic Bearings: High-precision bearings that use pressurized fluid to separate the bearing surfaces, eliminating friction.

Rolling Friction Bearings

• Ball Bearings: Bearings that utilize balls as rolling elements, offering high load capacity and rotational speeds.

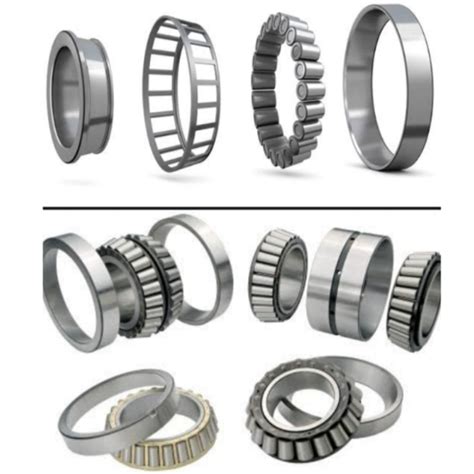

• Roller Bearings: Bearings that employ cylindrical or tapered rollers, capable of handling heavy loads and high torque.
• Needle Bearings: Bearings with needle-shaped rollers, providing compact size and high load capacity in restricted spaces.

Applications of Friction Bearings

Friction bearings are employed in a wide range of applications across diverse industries, including:

• Automotive: Engines, transmissions, suspensions
• Aerospace: Aircraft engines, flight controls
• Manufacturing: Machine tools, conveyors, pumps
• Construction: Cranes, elevators, material handling equipment
• Agriculture: Tractors, harvesters, irrigation systems
• Mining: Heavy machinery, conveyors

Maintenance of Friction Bearings

Proper maintenance of friction bearings is crucial for ensuring optimal performance and extending lifespan. Some key maintenance practices include:

• Lubrication: Regular application of proper lubricants is essential to reduce friction and wear.
• Grease Replacement: In grease-lubricated bearings, timely grease replenishment is necessary.
• Oil Changes: Oil-lubricated bearings require periodic oil changes to maintain the lubricant's integrity.
• Inspection: Regular inspections should be conducted to detect any signs of damage or wear.
• Replacement: Worn or damaged bearings should be promptly replaced to prevent further issues.

Common Mistakes to Avoid

• Overloading: Exceeding the load-bearing capacity of a bearing can lead to premature failure.
• Improper Lubrication: Using the wrong lubricant or insufficient lubrication can cause excessive wear and friction.
• Contamination: Contaminants such as dirt, moisture, or metal particles can damage bearing surfaces.
• Improper Installation: Incorrect installation can result in bearing failure or reduced performance.
• Inadequate Maintenance: Neglecting regular maintenance can compromise bearing integrity and shorten its lifespan.

How to Choose the Right Friction Bearing

Selecting the appropriate friction bearing for a specific application involves considering factors such as:

• Load: The load that the bearing will be subjected to.
• Speed: The rotational speed of the bearing.
• Temperature: The operating temperature of the bearing.
• Lubrication: The type of lubricant that will be used.
• Size and Space: The size and space constraints of the application.

Step-by-Step Approach to Friction Bearing Maintenance

1. Inspect the bearing: Look for any visible signs of damage, wear, or contamination.
2. Clean the bearing: Remove any dirt, debris, or contaminants from the bearing surfaces and housing.
3. Lubricate the bearing: Apply the appropriate lubricant according to the bearing's requirements.
4. Reinstall the bearing: Carefully reinstall the bearing, ensuring proper alignment and fit.
5. Monitor the bearing: Regularly check the bearing's operation and temperature, and make adjustments as necessary.

Pros and Cons of Friction Bearings

Pros:

• Simple design and low cost
• Ability to handle high loads and shock loads
• Suitable for low to moderate speeds
• Can operate in harsh conditions

Cons:

• Higher friction compared to rolling bearings
• Require regular lubrication
• Prone to wear and tear
• Generate more heat

Additional Considerations

• Bearing Materials: Friction bearings can be made from various materials, including steel, bronze, cast iron, and polymers.
• Bearing Coatings: Coatings can be applied to bearing surfaces to improve their performance, such as reducing friction or corrosion resistance.
• Seals: Seals are essential for preventing contaminants from entering the bearing and lubricant from leaking out.
• Standards and Regulations: Adherence to industry standards and regulations is important to ensure bearing quality and reliability.

Conclusion

Friction bearings are indispensable components in a wide range of industries, providing motion with reduced friction and wear. Understanding the different types, applications, maintenance practices, and common mistakes associated with friction bearings enables engineers and technicians to make informed decisions and optimize bearing performance. By carefully selecting and properly maintaining friction bearings, they can ensure reliable and efficient operation of their systems.
