The Ultimate Guide to Lock Nuts: Ensuring Secure Connections and Preventing Unintentional Loosening

A lock nut, also known as a prevailing torque nut or self-locking nut, is an essential component in various industrial and engineering applications. Its primary purpose is to maintain a secure connection between two threaded components, preventing unintentional loosening due to vibrations, thermal expansion, or other dynamic forces. This article aims to provide a comprehensive overview of lock nuts, covering their types, materials, industry applications, benefits, and best practices.

Types of Lock Nuts

Lock nuts come in a wide range of designs and materials to meet the specific requirements of different applications. Some common types include:

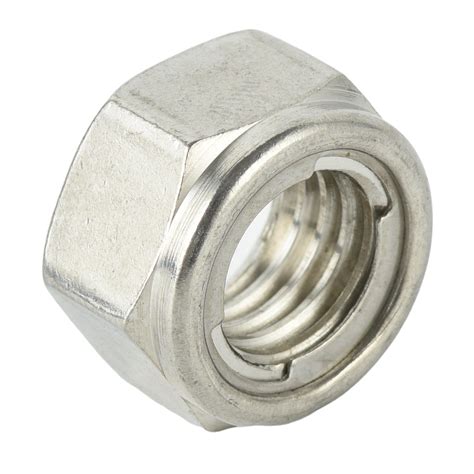

• Hex Lock Nut: The most basic type of lock nut, featuring a hexagonal head for tightening with a wrench.
• Nylok Lock Nut: Incorporates a nylon insert that deforms upon tightening, creating a frictional lock between the threads.
• Split Lock Nut: Consists of two separate halves that interlock when tightened, providing a tight and vibration-resistant connection.
• All-Metal Lock Nut: Made entirely of metal, with a deformed or slotted thread that creates a locking action against the mating component.
• Beam Lock Nut: Utilizes a flexible beam that presses against the threads to prevent loosening.
• Knurled Lock Nut: Has a knurled surface on the outer circumference to provide additional grip and prevent rotation.

Materials for Lock Nuts

Lock nuts can be manufactured from a variety of materials, each with its own advantages and limitations:

• Steel: The most common material, providing good strength, durability, and resistance to wear and corrosion.
• Stainless Steel: Offers excellent corrosion resistance and is suitable for applications in harsh environments.
• Brass: Offers high electrical conductivity and is often used in electronic applications.
• Aluminum: Lightweight and corrosion-resistant, suitable for applications where weight reduction is critical.
• Nylon: Used in Nylok lock nuts, providing a strong frictional lock and reducing vibration.

Applications of Lock Nuts

Lock nuts find widespread applications in numerous industries, including:

• Automotive: Securing wheel hubs, engine components, and suspension systems.
• Industrial Machinery: Maintaining connections in gearboxes, pumps, and other heavy machinery.
• Aerospace: Ensuring safety and reliability in critical aircraft components.
• Construction: Fastening structural elements in bridges, buildings, and other infrastructure projects.
• Electronics: Securing electrical connections and preventing short circuits.

Benefits of Using Lock Nuts

Incorporating lock nuts into your designs offers several key benefits:

• Prevents Unintentional Loosening: The primary function of lock nuts is to prevent unintentional loosening in demanding applications.
• Maintains Safety: Secure connections ensure that critical components stay in place, preventing accidents and equipment failures.
• Increases Reliability: By maintaining tight connections, lock nuts enhance the reliability of machinery and equipment.
• Reduces Maintenance Costs: By preventing loosening and premature wear, lock nuts help reduce maintenance intervals and associated costs.
• Provides Vibration Resistance: Lock nuts are specifically designed to withstand vibrations and prevent connections from coming loose.

Tips and Tricks

To ensure optimal performance of lock nuts:

• Choose the Right Type: Select the appropriate lock nut type and material based on the specific application requirements and environmental conditions.
• Tighten Properly: Use the recommended torque values to tighten lock nuts securely. Overtightening can damage the threads or the nut itself.
• Inspect Regularly: Periodically inspect lock nuts for signs of wear or loosening, especially in critical applications.
• Use Thread Lockers: In certain situations, applying thread lockers in conjunction with lock nuts can further enhance connection security.
• Replace When Necessary: If a lock nut becomes damaged or fails to maintain a secure connection, it should be replaced promptly.

Common Mistakes to Avoid

To avoid common pitfalls when using lock nuts:

• Do not Retighten: Lock nuts are designed to be tightened once and maintained at the specified torque. Retightening can damage the nut and reduce its effectiveness.
• Do not Reuse: Lock nuts should not be reused after being removed. The deformed or slotted threads lose their locking ability upon removal.
• Do not Overtighten: Excessive torque can damage the nut, the mating component, or both.
• Do not Use with Incompatible Materials: Ensure that the lock nut and mating component are made of compatible materials to prevent galvanic corrosion.

Pros and Cons of Lock Nuts

Weighing the advantages and disadvantages of lock nuts is essential:

Pros:

• Prevent unintentional loosening of threaded connections.
• Increase safety and reliability of equipment.
• Reduce maintenance costs.
• Provide vibration resistance.

Cons:

• Can be more expensive than standard nuts.
• Not suitable for all applications, such as those requiring frequent disassembly.
• Some types of lock nuts can be difficult to remove or require special tools.

Case Studies and Best Practices

Case Study 1: A manufacturing company experienced premature loosening of wheel hubs on its heavy-duty trucks, leading to downtime and safety concerns. By implementing self-locking hex nuts, they significantly reduced hub loosening incidents, saving time and preventing accidents.

Case Study 2: An aerospace company had issues with critical engine components coming loose due to vibrations. By utilizing beam lock nuts, they achieved secure connections and improved engine reliability, ensuring safe aircraft operations.

Case Study 3: A construction firm encountered challenges with connections in high-rise steel structures weakening over time. By using all-metal lock nuts, they maintained tight and reliable connections, enhancing the structural integrity and longevity of the buildings.

Standards and Regulations

The design, manufacturing, and testing of lock nuts are guided by various industry standards and regulations, including:

• ISO 10511: Specifies the dimensions, tolerances, and performance requirements for hexagon lock nuts.
• ASTM A563: Covers the material specifications and performance requirements for carbon steel and alloy steel lock nuts.
• DIN 985: Provides guidelines for the dimensions and tolerances of hexagon lock nuts in metric sizes.
• ASME B18.16: Outlines the dimensions and tolerances for inch series lock nuts.

Conclusion

Lock nuts play a vital role in maintaining secure connections and preventing unintentional loosening in various industries. By understanding the different types, materials, applications, benefits, and best practices associated with lock nuts, engineers and designers can optimize their designs and ensure the safe and reliable operation of their systems. Always consult with qualified professionals and refer to industry standards to ensure proper selection and installation of lock nuts.
