Rupture Discs: A Comprehensive Guide to Safety and Pressure Relief

Introduction

Rupture discs are critical safety devices used in various industries to protect pressure vessels and piping systems from over-pressurization. They act as a controlled release mechanism, bursting at a predetermined pressure to prevent catastrophic failures. Understanding the principles of rupture discs and their applications is essential for ensuring plant safety and minimizing risk.

What is a Rupture Disc?

A rupture disc is a thin, metal membrane designed to rupture at a specific pressure. It is typically installed between two flanges in a pressure vessel or piping system. When the pressure inside the vessel exceeds the rupture disc's burst pressure, the membrane bursts, providing a path for the release of excess pressure.

Types of Rupture Discs

There are various types of rupture discs available, each with unique characteristics and applications. The most common types include:

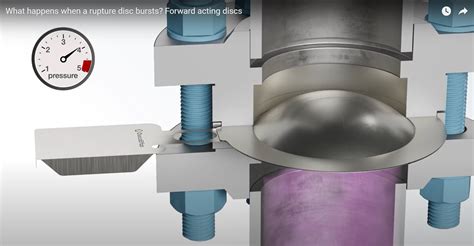

• Forward-acting: The most common type, where the pressure acts against the membrane, causing it to rupture outward.
• Reverse-acting: The reverse of forward-acting, where the pressure acts on the back of the membrane, causing it to rupture inward.
• Reverse buckling: A hybrid design that combines forward and reverse acting, creating a high-pressure and vacuum-rated disc.
• Composite: Features a multilayer construction with different materials for enhanced performance and corrosion resistance.
• Scored: A specially designed rupture disc with a pre-scored membrane to ensure a clean and precise burst.

Applications of Rupture Discs

Rupture discs are vital in numerous industries, including:

• Chemical and petrochemical: Protection of reactors, distillation towers, and pipelines from over-pressurization due to chemical reactions or blockages.
• Oil and gas: Safety in pipelines, storage tanks, and processing equipment.
• Pharmaceutical: Maintaining sterile environments in bioreactors and preventing contamination in production lines.
• Food and beverage: Ensuring safety in sterilization equipment, storage vessels, and canning processes.
• Aerospace: Protecting rocket engines, fuel tanks, and spacecraft from pressure surges.

Selection and Installation of Rupture Discs

Choosing the right rupture disc for a given application requires careful consideration of several factors, including:

• Burst pressure: The pressure at which the disc should rupture.
• Temperature range: The operating temperature range of the system.
• Materials compatibility: The chemical compatibility of the rupture disc with the process fluid.
• Flow rate: The required flow rate through the rupture disc after it bursts.

Proper installation of rupture discs is crucial for safe and effective operation. Key steps include:

1. Clean flange surfaces: Ensure clean and smooth surfaces on the flanges where the rupture disc will be installed.
2. Use gasket: Place a compatible gasket between the rupture disc and flanges to prevent leaks.
3. Tighten bolts evenly: Tighten the bolts holding the flanges in place evenly to prevent distortion and ensure uniform pressure distribution.
4. Protect from damage: Protect the rupture disc from mechanical damage during installation and operation.

Benefits of Using Rupture Discs

Rupture discs offer a range of benefits for pressure management and safety in industrial applications:

• Pressure relief: Controlled release of pressure, preventing catastrophic failures and minimizing damage to equipment.
• Cost-effectiveness: Relatively inexpensive safety device compared to other pressure relief systems.
• Versatile: Wide range of applications and burst pressure options.
• Reliable: High burst accuracy and predictable performance in emergency situations.

Standards and Regulations

Rupture discs must meet specific standards and regulations to ensure safety and quality. Relevant standards include:

• ASME Boiler and Pressure Vessel Code (BPVC) Section VIII: Provides requirements for the design, construction, and inspection of pressure vessels and rupture discs.
• ISO 4126: International standard for burst pressure testing methods and calibration of rupture discs.
• API 520 and 521: Specific standards for rupture discs used in the oil and gas industry.

Tips and Tricks for Using Rupture Discs

• Choose the right burst pressure: Select a rupture disc with a burst pressure slightly higher than the maximum allowable working pressure of the system.
• Consider temperature effects: Ensure that the rupture disc can withstand the operating temperature range of the system.
• Install a secondary safety device: Install a backup pressure relief device, such as a relief valve, in parallel with the rupture disc for added protection.
• Regularly inspect and replace: Inspect rupture discs periodically and replace them when damaged or after their lifespan has ended.
• Train personnel: Train operating personnel on the proper handling and installation of rupture discs.

How to Choose the Right Rupture Disc: Step-by-Step Approach

1. Determine the maximum allowable working pressure: Identify the highest pressure that the system can safely withstand.
2. Calculate the required burst pressure: Multiply the maximum allowable working pressure by a safety factor (typically 1.25 to 1.5).
3. Select a rupture disc type: Choose the appropriate type of rupture disc based on the application and operating conditions.
4. Consider material compatibility: Ensure that the rupture disc is made of a material compatible with the process fluid and operating environment.
5. Size the rupture disc: Determine the required flow rate and select a rupture disc with an appropriate diameter.
6. Follow installation instructions: Carefully follow the manufacturer's installation instructions for safe and effective operation.

Pros and Cons of Rupture Discs

Pros:

• High reliability: Accurate burst performance under emergency conditions.
• Cost-effectiveness: Relatively inexpensive safety device.
• Versatile application: Suitable for various industries and pressure ranges.
• Predictable failure: Bursts at a predetermined pressure.

Cons:

• Limited use after bursting: Cannot be reset or reused after bursting.
• Potential for clogging: Accumulation of solids or debris can hinder the rupture process.
• Requires regular inspection and replacement: Periodic maintenance is necessary to ensure effectiveness.

Call to Action

Proper selection, installation, and maintenance of rupture discs are essential for ensuring the safety of pressure systems and minimizing risks. By understanding the principles and applications of rupture discs, industries can effectively implement these critical safety devices and safeguard their personnel, equipment, and processes.
